Huge Battery Magnetic GPS Tracker GPX10L
|
|
|
Product Description
GPS tracker GPX10XL is one of the independently researched and developed GPS products from Gopass. which adopted imported high gain GPS module and unique dual module design, global commonly used WCDMA+GSM receiving antenna, with the lowest power consumption design and magnetic bottom, so it’s the most suitable GPS tracker without any complicated installations to hide in vehicles.
pecifications
Model |
GX10L |
Brand |
Neural |
Network |
GSM/WCDMAGPRS |
GSM module |
850/900/1800/1900 Mhz |
WCDMA module |
850/900/1900/2100 Mhz |
GPS accuracy |
5 meters |
GPS sensitivity |
-159 dBm |
Hot start |
1 second on average |
Warm start |
35 seconds on average |
Cold start |
45 seconds on average |
Working duration |
20,000 MAH battery for 200 days
|
Working temperature |
-20~+55 ℃ |
Storage temperature |
-40~+85 ℃ |
Working humidity |
5-95% non-condensing |
Car charging voltage |
Input: 12-24 V
Output: 5 V
|
Phone APP operating system |
Android 2.3 & higher version
IOS 5.0 & higher version |

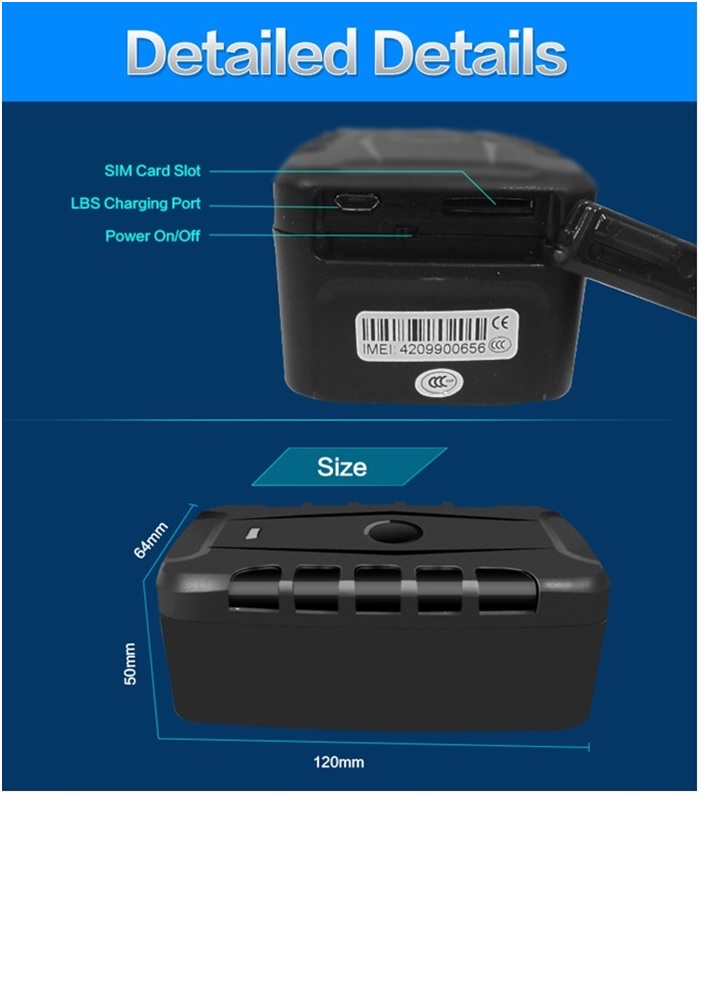

Size |
Length: 12 cm
Width: 6.5 cm
Height: 3.5 cm
Packing size: 13*9*7.2 cm/piece
|
Product Composition
GSM/GPRS module |
MTK6260 |
Li-ion battery |
10,000 MAH for 100 days(Chargeable) |
GPS chip |
U-BLOX |

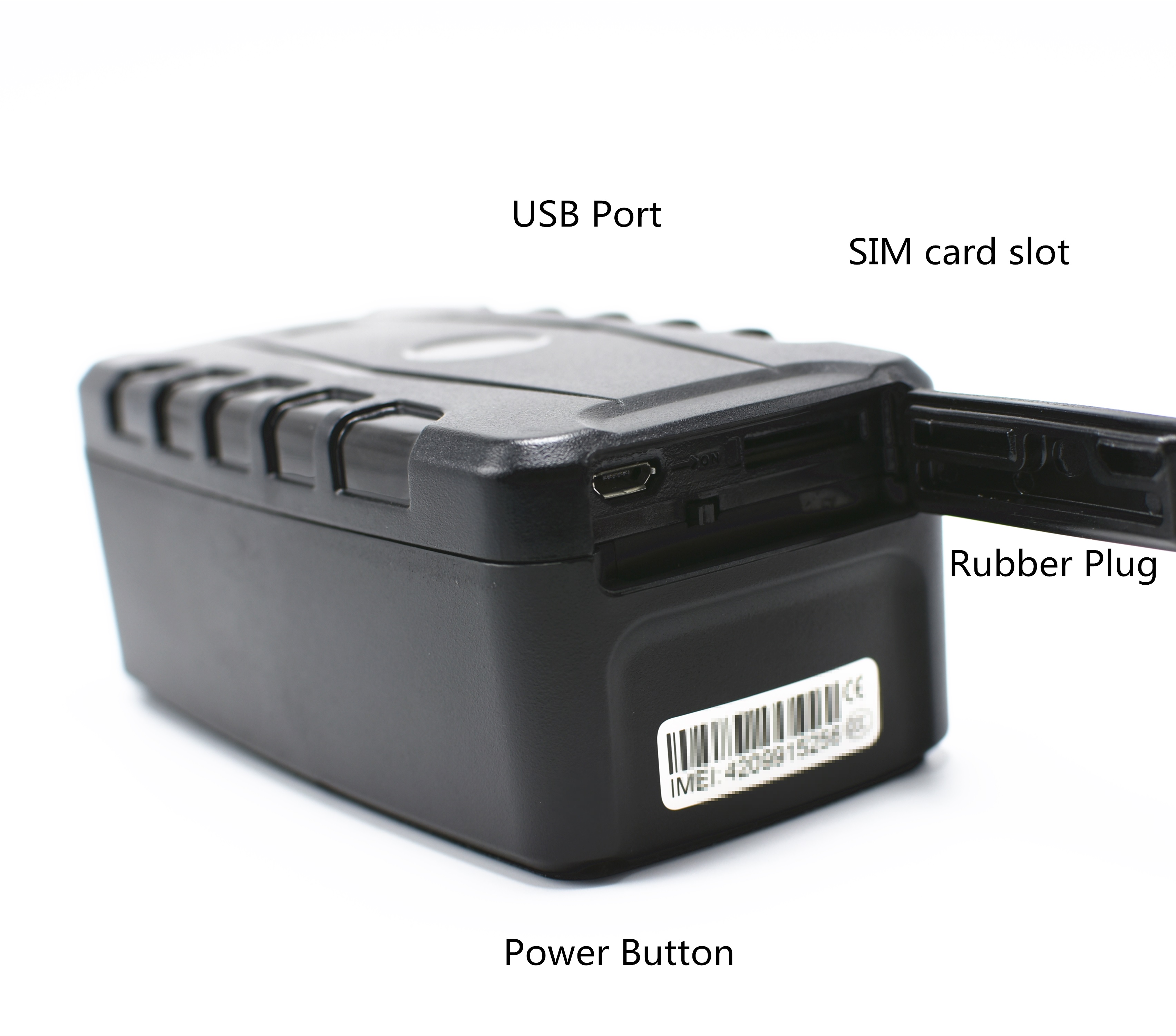

SIM card slot |
1 unit |
Accessories |
1*Charger(110-220 V input, 5 V output)
1*Charging cable
1*User Manual |
Functions
Fall off alarm |
A warning message will be sent to webpage GPS tracking platform & phone APP once it falled off from the absorbed position. |
Low power alarm |
Supported. |
Overspeed alarm |
Supported. |
Intelligent switching |
Supported. |
Base station
auxiliary positioning
|
Supported
|
Position data uploading
time interval setting |
Supported
|
Geofencing |
A Geofence can be set and the warning messages will be sent once the tracker was out of the geofence. |
Historical route replay |
The historical moving route of the latest 3 months(at least) of the watch can be replayed. |
Residual energy display |
The residual energy of the tracker can be displayed on the Web tracking platform and phone APP. |
Low power consumption mode |
GPS module will be shut down automatically when the vehicle is stayed still for a long time. |
GSM blind port storage
|
Positioning data will be saved for 1-2 days when there is no GPRS signal until the signal is found and the data uploded. |
Highlights
-It’s magnetic so there is no need to connect to vehicle's battery and fuel pump.
-It’s fire/crash-proof.
-It has GPS and GSM antenna so the accuracy is excellent.
-It’ll sleep automatically when it’s still and will be awakened by moving, therefore, it can save power a lot.
-It’ll send a message to the monitor telephone number to warn that power's low.
-It can switch intelligently because it has dual mode.

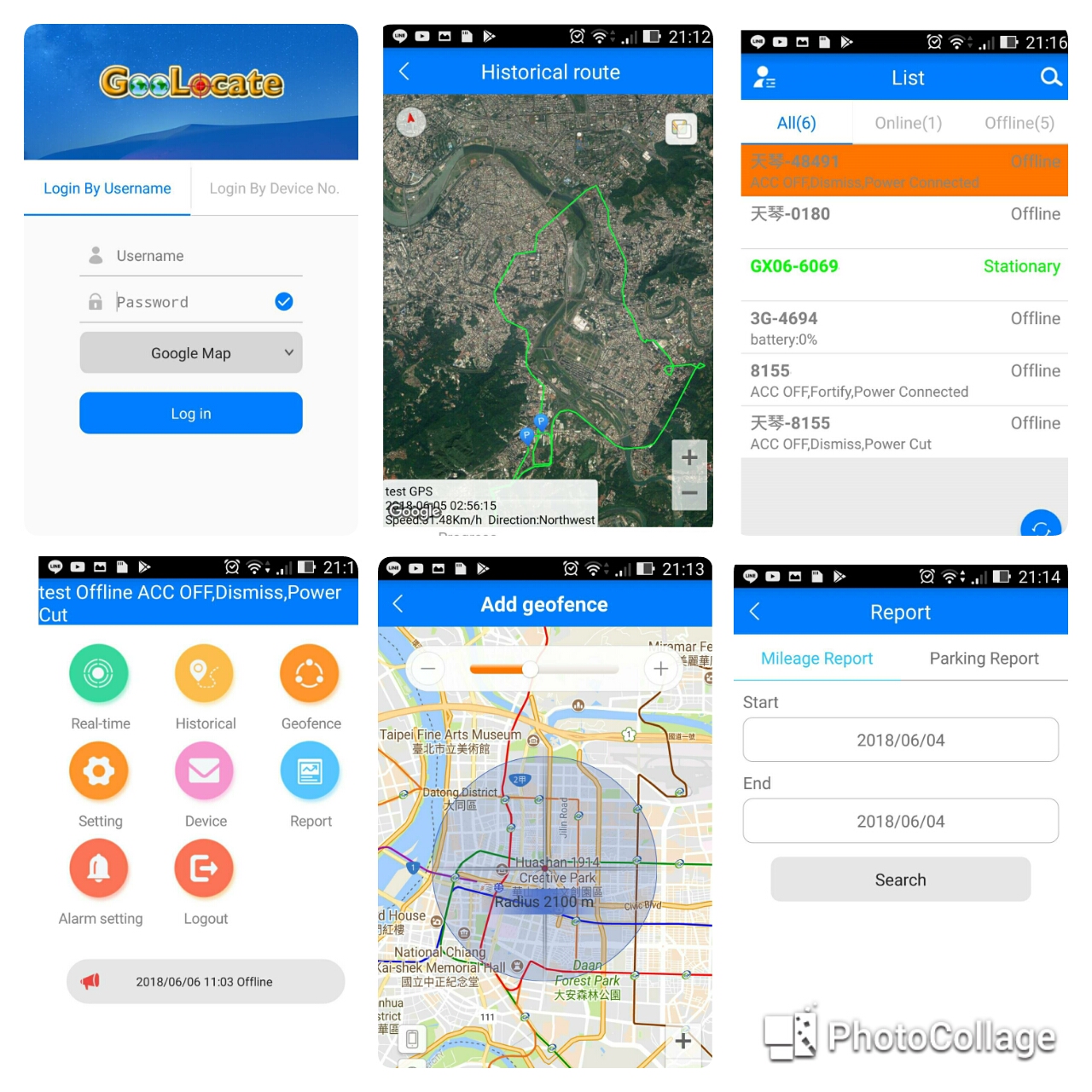

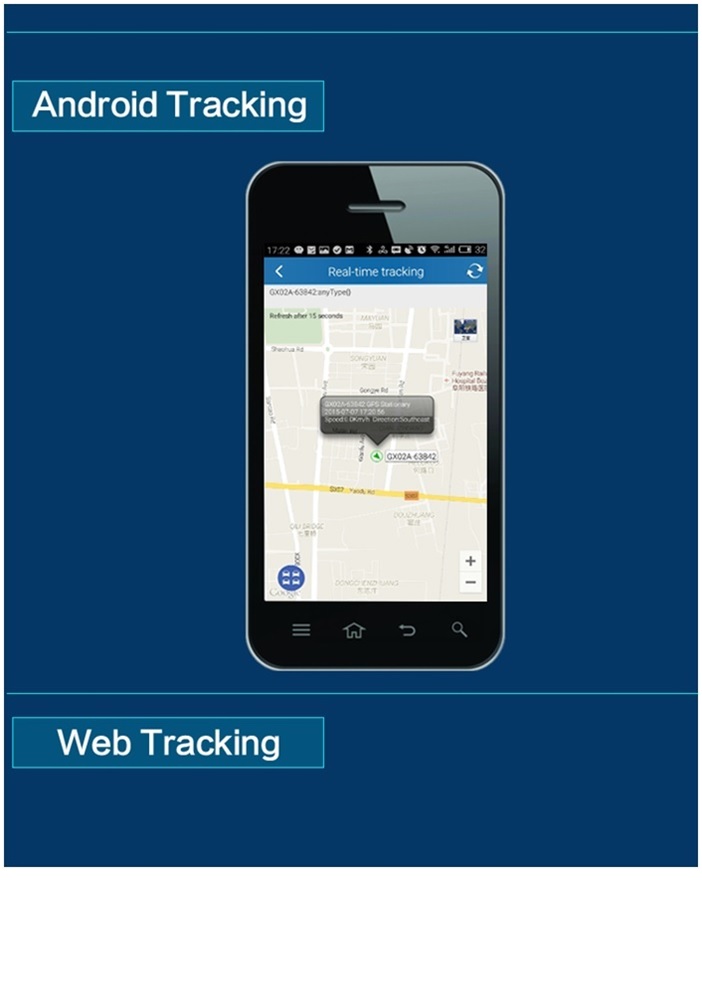

-It can be tracked by webpage GPS tracking platform/android & IOS phone APP/messages.

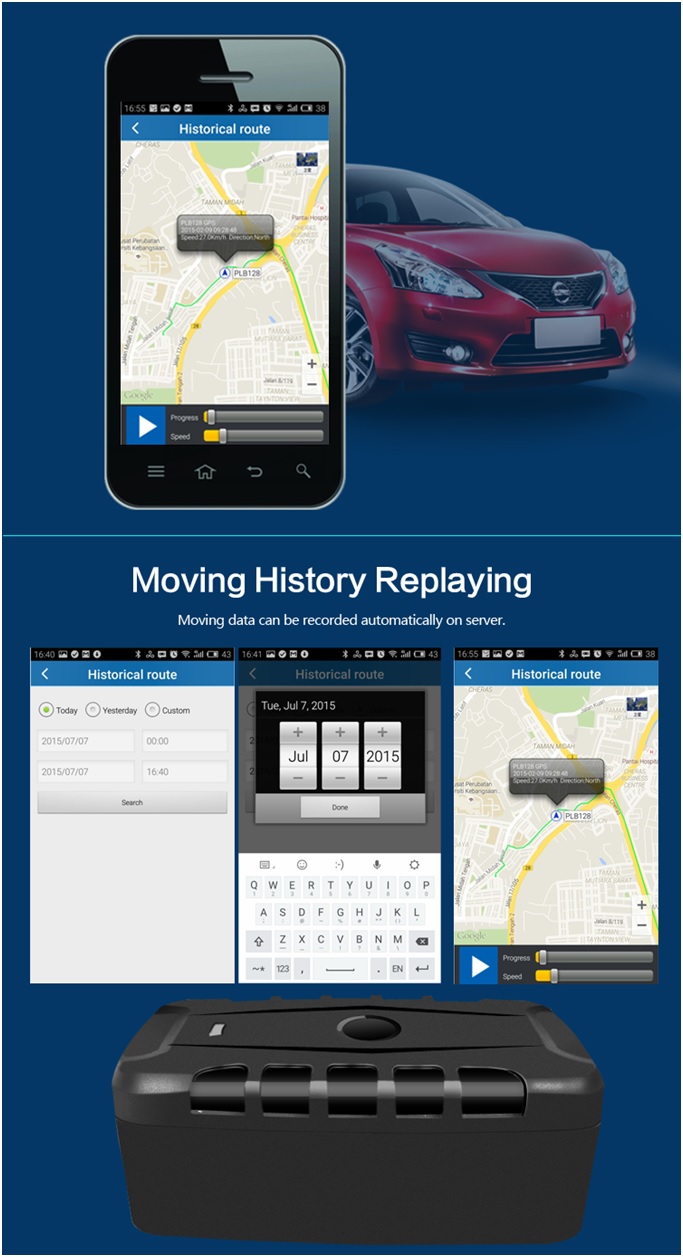

-It supports replay historical moving route.
-It supports geofencing set by the webpage GPS tracking platform/smart phone APP/messages, once it’s out of fence, a warning will be sent to the monitor phone number.
-It supports TCP communication on GPRS.
-It supports base station auxiliary positioning which can increase the accuracy.
-It supports alarming when: low voltage, vibrating, overspeeding etc.
-Its battery has huge capacity.
-Its remaining power can be displayed on GPS tracking platform/android & IOS phone APP/messages.
Usage Range
-Vehicle: Motorcycle, electrocar, car etc.
-Industry: Vehicle fleet management, car rental, transportation etc.
-Asset: Luggage, safe case, bag etc.
-Circumstances: checking the moving route of family car, tracking the car which was lent or stolen, monitoring the government cars which was privately used etc.
|
